How to Check Your Bluetooth Signal Strength

  • Updated

Overview

If you're experiencing connectivity or movement issues with your Omni One, a weak Bluetooth signal could be the cause. You can use a free diagnostic tool called ToolBlex to check the signal strength between your PC and your Omni One treadmill.



Step-by-Step Instructions

1. Download ToolBlex Bluetooth Signal Analyzer

Note: ToolBlex is a third-party utility used to scan and report signal strength (RSSI) for Bluetooth devices.

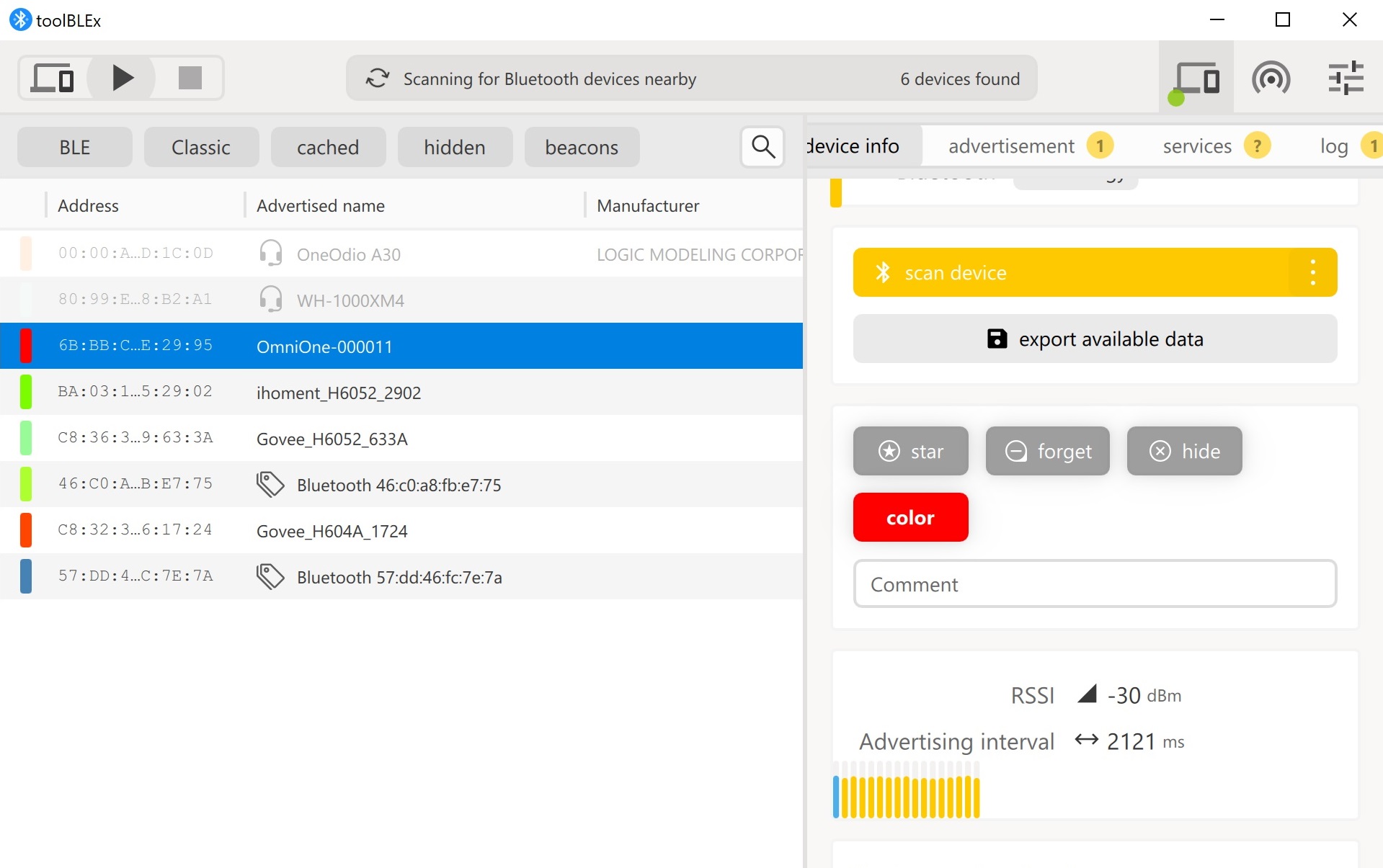

2. Launch ToolBlex and Check the RSSI (Signal Strength)

  • Open ToolBlex and start a Bluetooth scan.

  • Locate your Omni One from the list of nearby Bluetooth devices.

  • Once your Omni One is selected, look for the RSSI (Received Signal Strength Indicator) value, which is displayed in dBm.

Signal Strength Guide:

  • 0 to -30 dBm: Excellent signal—no issues expected.

  • ⚠️ -30 to -60 dBm: Moderate signal—may result in intermittent movement issues.

  • Worse than -60 dBm: Poor signal—likely connection failures.


Improving Your Signal

If your RSSI falls outside the optimal range:

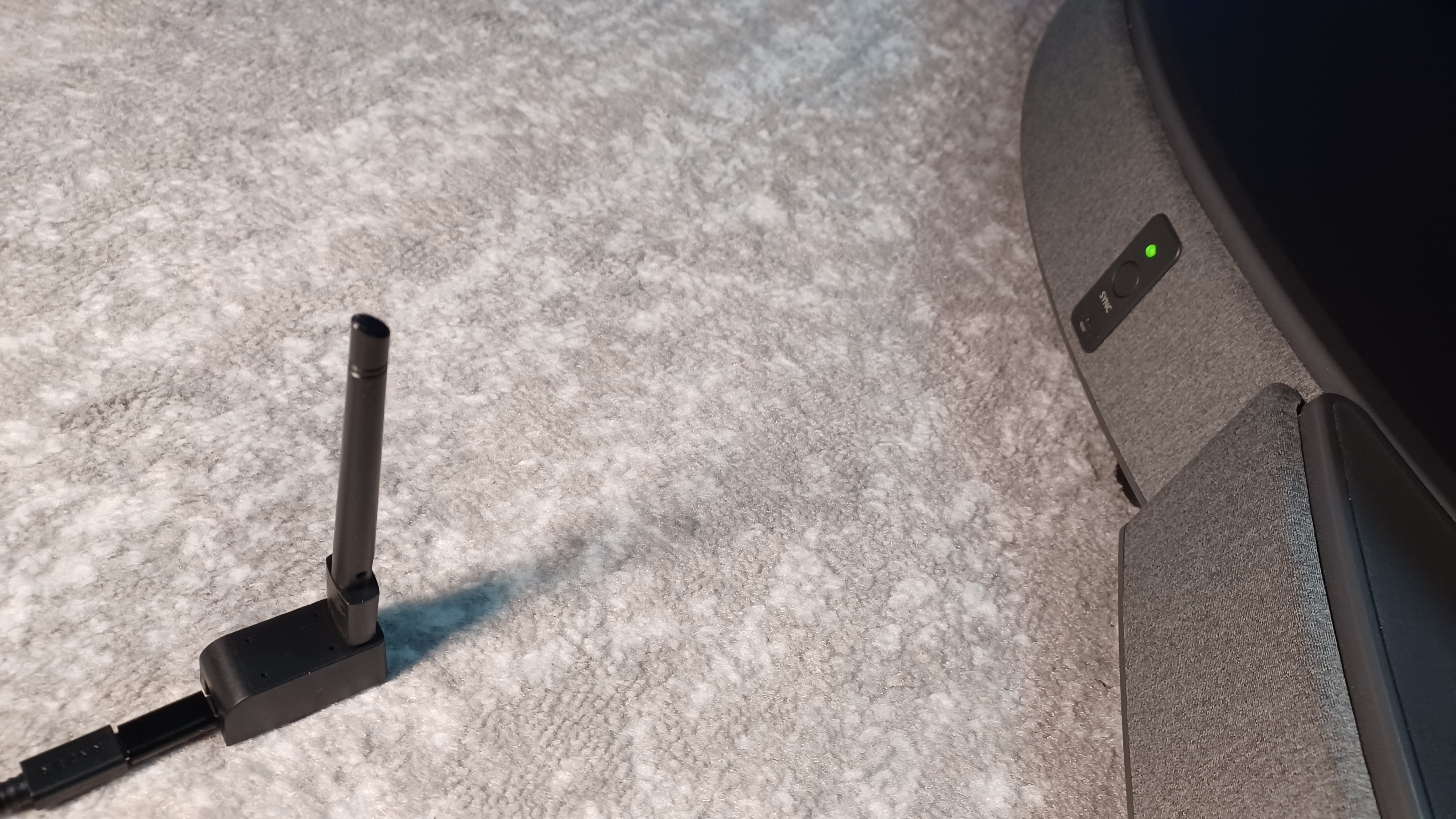

  • Move Your Bluetooth Dongle:
    Place your PC’s Bluetooth dongle closer to the power LED on your Omni One (this is where the Omni’s internal Bluetooth receiver is located).

  • Use a USB Extender:
    For best results, use a USB extension cable to reposition your Bluetooth dongle. This can significantly improve signal strength, especially in setups where the dongle is blocked or far from the Omni.

  • Use 2.0 Ports:
    We recommend using a USB 2.0 port and cable for the dongle and extender (not a USB 3.0 port, which is blue), as some 3.0 ports can cause interference. Ideally, avoid plugging anything into 3.0 USB ports on your PC where possible.
