If you have disassembled your Omni One, make sure you follow these important safety procedures when reassembling.
Connecting the arm to the arm hub:
Connect the arm cable to the circular connector on the arm hub using the white indicators to align them. Then, tighten the knurled fitting to secure the cable.
Carefully lift up the arm and slowly lower it onto the arm hub.

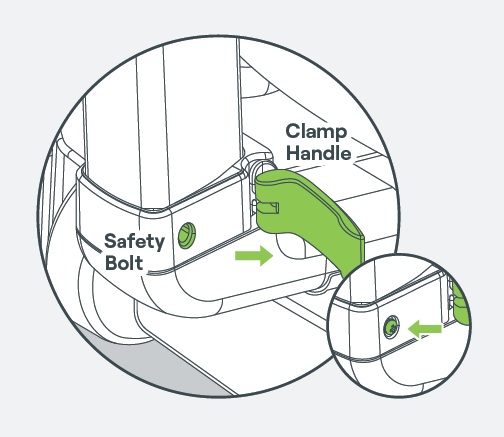

If you have the safety bolt, insert it into the highlighted location and tighten it with the screwdriver (this applies to newer versions of Omni One, which have a safety bolt feature added here).
Close the clamp handle and tighten the clamp by rotating the cam nut in the direction shown in the diagram.
Then, to ensure a tight and secure fit, reopen the clamp handle and rotate the cam nut another half turn. Finally, close the clamp handle again - it should require some force to completely close the handle.
| WARNING | |
| When disassembling, do not remove the cam nut or clamp handle from the arm. If it was removed, make sure that the white washer remains on the correct side (the clamp handle side), and that the bolt for the clamp handle is pushed fully through so that the cam nut can fasten onto it. |
Always verify that the arm is securely attached to the arm hub. If in any doubt, please contact help@virtuix.com.
Connecting the vest to the arm:
Insert the vest fully in the locking mechanism of the arm. Ensure that the red label is no longer visible.

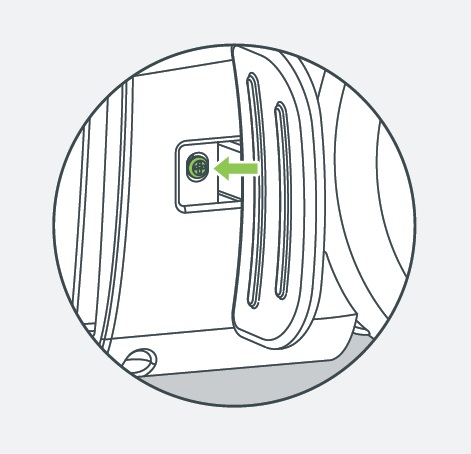

If you have the safety bolt, insert it into the highlighted location and tighten it with the screwdriver (this applies to newer versions of Omni One, which have a safety bolt feature added here).
Once assembled, visually inspect all parts of the treadmill and accessories to confirm they are in working order and do not appear to have cracks, tears, bulges, bending, or other signs of wear and tear. Check all fasteners and moving parts, and confirm that all nuts, bolts, clamp handles, and other mechanical connections are securely fastened.
If the vest is not fully inserted in the arm’s locking mechanism, the vest hinge won’t rotate, preventing proper use of Omni One.
To ensure safe operation, you must confirm that:
• The vest is fully inserted in the locking mechanism of the arm, and the safety bolt (on newer models) is tightened.
• The arm is securely attached to the arm hub of the base, with both the clamp handle and safety bolt (on newer models) tightened.
